Estava analisando essa biblioteca da Hwgui, que mistura modo console dentro da tela Hwgui.
Vejam que interessante.

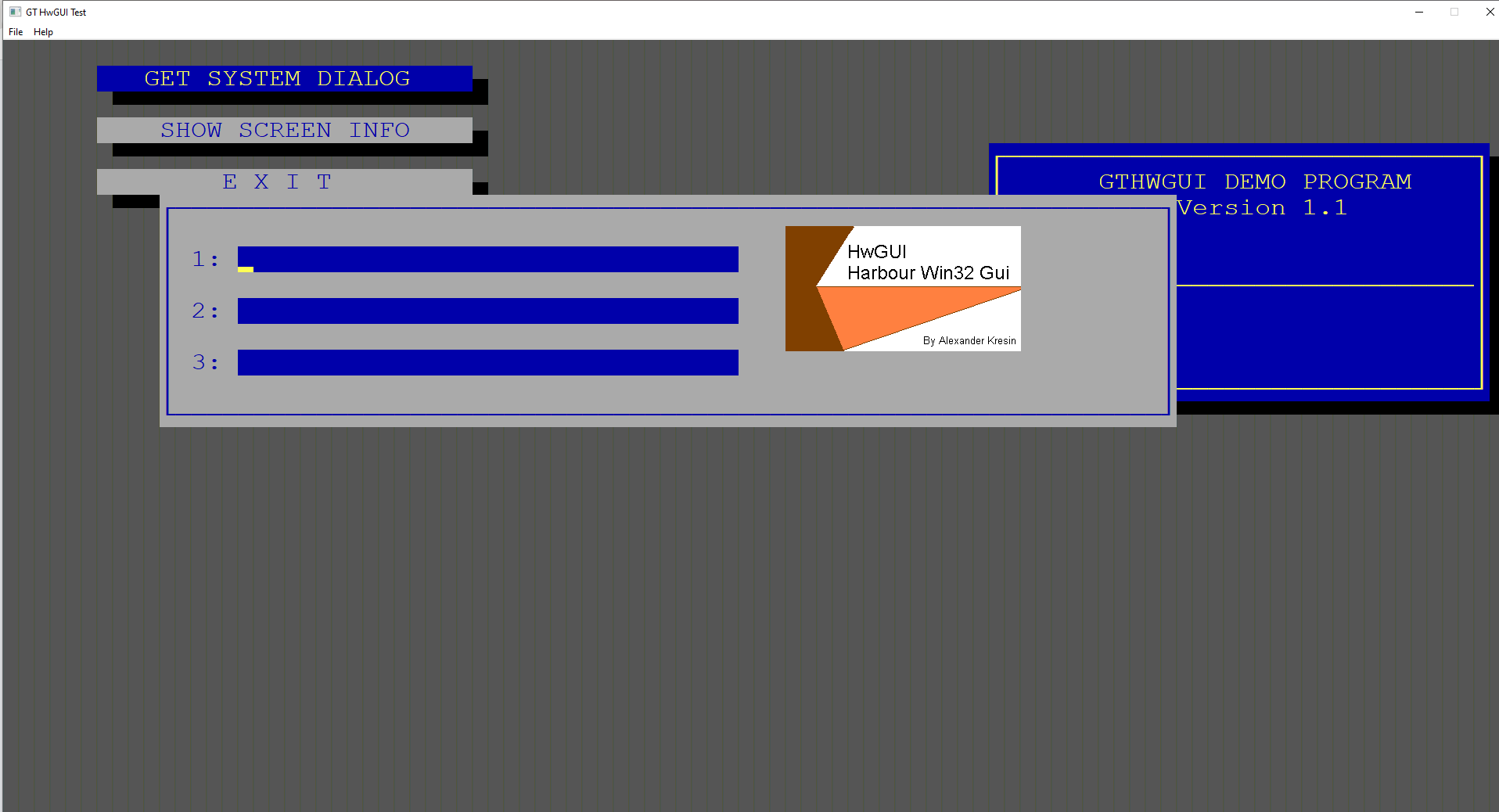

- 2026-08-26_23-02-15.png (63.78 KiB) Exibido 48 vezes
Vou usar esse recurso para migrar um sistema inteiro para Hwgui. Vou fazer os testes e posto aqui os resultados.
Detalhe 100% Unicode + 64Bits + Clang ou GCC. Mas pretendo usar Clang agora como padrão.
Olhem o código e vejam como é familiar, mudei a função para passar linha, coluna da imagem.
Entendam o seguinte a tela DENTRO da Window Main(principal) é GTHWG tipo GTWIN, GTWVT, GTWVW.
Precisa desenhar pensando nisso! A resolução do monitor A jenela MAin, para pode usar os recursos da Hwgui e a tela CONSOLE.
Código: Selecionar todos
/*
* $Id: test1.prg 3429 2023-12-22 10:59:13Z josequintas $
*
* GTHWG, Video subsystem, based on HwGUI
*
* test1.prg - simple test program
*
* Copyright 2021 - 2023 Alexander S.Kresin <alex@kresin.ru>
* www - http://www.kresin.ru
*/
REQUEST HB_GT_HWGUI
REQUEST HB_GT_HWGUI_DEFAULT
REQUEST HB_CODEPAGE_RU866
REQUEST HB_CODEPAGE_UTF8
#include "hbgtinfo.ch"
#include "inkey.ch"
STATIC shadow1
FUNCTION Main( _par1 )
LOCAL choice, frame, nw, nh
( _par1 )
SET DATE BRITISH
SET WRAP ON
SET SCORE OFF
hb_cdpSelect( "RU866" )
Set ( _SET_EVENTMASK, INKEY_ALL - INKEY_MOVE + HB_INKEY_GTEVENT )
CreateWindow()
SetMode( 30,100 )
nw := Min( 1920, hb_gtinfo( HB_GTI_DESKTOPWIDTH ) ) - 20
nh := Min( 1080, hb_gtinfo( HB_GTI_DESKTOPHEIGHT ) ) - 84
hb_gtinfo( HB_GTI_FONTWIDTH, Int( nw / ( MaxCol() + 1 ) ) )
hb_gtinfo( HB_GTI_FONTSIZE, Int( nh / ( MaxRow() + 1 ) ) )
frame := Replicate( Chr( 219 ), 9 )
shadow1 := Replicate( Chr( 220 ), 9 )
choice := 1
DO WHILE choice != 3 .AND. choice != 0
SET COLOR TO N+/N
@ 0, 0, 29, 99 BOX frame
@ 2, 7, 2, 30 BOX shadow1
@ 1, 30 SAY Chr( 223 )
@ 4, 7, 4, 30 BOX shadow1
@ 3, 30 SAY Chr( 223 )
@ 6, 7, 6, 30 BOX shadow1
@ 5, 30 SAY Chr( 223 )
DO ZAGOL
SET COLOR TO B/W,+GR/B
@ 01, 06 PROMPT " GET SYSTEM DIALOG "
@ 03, 06 PROMPT " SHOW SCREEN INFO "
@ 05, 06 PROMPT " E X I T "
MENU TO choice
DO CASE
CASE choice = 1
DO PGM1
CASE choice = 2
DO PGM2
ENDCASE
ENDDO
SET COLOR TO W/N
@ 0, 0 CLEAR TO 29, 99
gthwg_CloseWindow()
RETURN Nil
STATIC PROCEDURE ZAGOL
DO SHADOW WITH 04, 63, 13, 94
SET COLOR TO +GR/B
@ 4, 63 CLEAR TO 13, 94
@ 4, 63 TO 13, 94
@ 5, 70 SAY "GTHWGUI DEMO PROGRAM"
@ 6, 75 SAY "Version 1.1"
@ 09, 64 TO 09, 93
SET COLOR TO +RB/B
RETURN
STATIC PROCEDURE SHADOW( y1, x1, y2, x2 )
SET COLOR TO N+/N
@ y2 + 1, x1 + 1, y2 + 1, x2 + 1 BOX shadow1
@ y1 + 1, x2 + 1 CLEAR TO y2, x2 + 1
@ y1, x2 + 1 SAY Chr( 223 )
RETURN
STATIC PROCEDURE PGM1
LOCAL bufsc := SaveScreen( 6, 10, 14, 74 )
LOCAL x1, x2, x3, GetList := {}
@ 6, 10 CLEAR TO 14, 74
@ 6, 10 TO 14,74
gthwg_PaintCB( , "../../../image/hwgui.bmp",7,50 )
x1 := x2 := x3 := Space( 32 )
@ 8, 12 SAY "1:" GET x1
@ 10, 12 SAY "2:" GET x2
@ 12, 12 SAY "3:" GET x3
READ
gthwg_PaintCB()
RestScreen( 6, 10, 14, 74, bufsc )
RETURN
STATIC PROCEDURE PGM2
LOCAL bufsc := SaveScreen( 6, 20, 15, 44 )
@ 6, 20 CLEAR TO 15, 44
@ 6, 20 TO 15, 44
@ 08, 22 SAY "Rows: " + Ltrim( Str( MaxRow() ) )
@ 09, 22 SAY "Cols: " + Ltrim( Str( MaxCol() ) )
@ 10, 22 SAY "Height: " + Ltrim( Str( hb_gtinfo( HB_GTI_SCREENHEIGHT ) ) )
@ 11, 22 SAY "Width: " + Ltrim( Str( hb_gtinfo( HB_GTI_SCREENWIDTH ) ) )
@ 13, 22 SAY "Press any key"
Inkey(0)
RestScreen( 6, 20, 15, 44, bufsc )
RETURN
#include "hwgui.ch"
STATIC FUNCTION CreateWindow()
LOCAL oWnd := gthwg_CreateMainWindow( "GT HwGUI Test" )
MENU OF oWnd
MENU TITLE "&File"
MENUITEM "&New" ACTION hwg_MsgInfo( "New!" )
SEPARATOR
MENUITEM "&Exit" ACTION oWnd:Close()
ENDMENU
MENU TITLE "&Help"
MENUITEM "&About" ACTION hwg_MsgInfo( hwg_version()+Chr(13)+Chr(10)+"gt: " + hb_gtVersion(),"About" )
ENDMENU
ENDMENU
RETURN oWnd
FUNCTION gthwg_PaintCB( hDC, cFileName, nRow, nCol )
LOCAL aBmpSize
STATIC hImage, img_x1, img_y1, img_width, img_height
IF Empty( hDC )
IF Empty( cFileName )
gthwg_paint_SetCallback()
IF !Empty( hImage )
hwg_Deleteobject( hImage )
hImage := Nil
ENDIF
ELSE
hImage := hwg_OpenImage( cFileName )
IF !Empty( hImage )
// If coordinates are provided, use them; otherwise keep old behavior
IF nRow != NIL .AND. nCol != NIL
img_x1 := Int( hb_gtinfo( HB_GTI_SCREENWIDTH ) / MaxCol() ) * nCol
img_y1 := Int( hb_gtinfo( HB_GTI_SCREENHEIGHT ) / MaxRow() ) * nRow
ELSE
img_x1 := Int( hb_gtinfo( HB_GTI_SCREENWIDTH ) / MaxCol() ) * 50
img_y1 := Int( hb_gtinfo( HB_GTI_SCREENHEIGHT ) / MaxRow() ) * 8
ENDIF
aBmpSize := hwg_Getbitmapsize( hImage )
img_width := aBmpSize[ 1 ]
img_height := aBmpSize[ 2 ]
gthwg_paint_SetCallback( "GTHWG_PAINTCB" )
hwg_Invalidaterect( hb_gtinfo(HB_GTI_WINHANDLE), 0 )
ENDIF
ENDIF
ELSEIF !Empty( hImage )
hwg_Drawbitmap( hDC, hImage,, img_x1, img_y1, img_width, img_height )
ENDIF
RETURN Nil
