RMChart

[JoséQuintas]

Encontrei nos exemplos do Harbour.

a := 567.89 ; ? ">", a, b := hb_DynCall( { "TESTD" , cFileName, hb_bitOr( HB_DYN_CTYPE_DOUBLE , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_DOUBLE }, a ), _ISOK_( a, b )
a := 567.89 ; ? ">", a, b := hb_DynCall( { "TESTF" , cFileName, hb_bitOr( HB_DYN_CTYPE_FLOAT , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_FLOAT }, a ), _ISOK_( a, b )
a := -( 2 ^ 7 ) ; ? ">", a, b := hb_DynCall( { "TESTC" , cFileName, hb_bitOr( HB_DYN_CTYPE_CHAR , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_CHAR }, a ), _ISOK_( a, b )
a := ( 2 ^ 8 ) - 1 ; ? ">", a, b := hb_DynCall( { "TESTUC", cFileName, hb_bitOr( HB_DYN_CTYPE_CHAR_UNSIGNED , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_CHAR_UNSIGNED }, a ), _ISOK_( a, b )
a := -( 2 ^ 15 ) ; ? ">", a, b := hb_DynCall( { "TESTS" , cFileName, hb_bitOr( HB_DYN_CTYPE_SHORT , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_SHORT }, a ), _ISOK_( a, b )
a := ( 2 ^ 16 ) - 1 ; ? ">", a, b := hb_DynCall( { "TESTUS", cFileName, hb_bitOr( HB_DYN_CTYPE_SHORT_UNSIGNED , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_SHORT_UNSIGNED }, a ), _ISOK_( a, b )
a := -( 2 ^ 31 ) ; ? ">", a, b := hb_DynCall( { "TESTI" , cFileName, hb_bitOr( HB_DYN_CTYPE_INT , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_INT }, a ), _ISOK_( a, b )
a := ( 2 ^ 32 ) - 1 ; ? ">", a, b := hb_DynCall( { "TESTUI", cFileName, hb_bitOr( HB_DYN_CTYPE_INT_UNSIGNED , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_INT_UNSIGNED }, a ), _ISOK_( a, b )
a := -( 2 ^ 31 ) ; ? ">", a, b := hb_DynCall( { "TESTL" , cFileName, hb_bitOr( HB_DYN_CTYPE_LONG , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_LONG }, a ), _ISOK_( a, b )
a := ( 2 ^ 32 ) - 1 ; ? ">", a, b := hb_DynCall( { "TESTUL", cFileName, hb_bitOr( HB_DYN_CTYPE_LONG_UNSIGNED , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_LONG_UNSIGNED }, a ), _ISOK_( a, b )
a := -( 2 ^ 63 ) ; ? ">", a, b := hb_DynCall( { "TEST6" , cFileName, hb_bitOr( HB_DYN_CTYPE_LLONG , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_LLONG }, a ), _ISOK_( a, b )
a := 18446744073709600000 ; ? ">", a, b := hb_DynCall( { "TESTU6", cFileName, hb_bitOr( HB_DYN_CTYPE_LLONG_UNSIGNED , HB_DYN_CALLCONV_CDECL ), HB_DYN_CTYPE_LLONG_UNSIGNED }, a ), _ISOK_( a, b )
a := "hello world!" ; ? ">", a, b := hb_DynCall( { "TESTST", cFileName, hb_bitOr( HB_DYN_CTYPE_CHAR_PTR , HB_DYN_CALLCONV_CDECL ) }, a ), _ISOK_( a, b )

O mais estranho é que não tem #define em lugar nenhum pra isso tudo.

[JoséQuintas]

Tem sim, eu estava procurando tudo como *CALL_CONV*
Em hbdyn.ch

Código: Selecionar todos

#define HB_DYN_CTYPE_DOUBLE                 0x0000007
#define HB_DYN_CTYPE_DOUBLE_PTR             0x0000107

Ao que parece, não é converter antes, e sim converter durante a chamada.
Não tenho idéia de como isso funciona.... rs

[JoséQuintas]

Deixando a parte técnica de lado, e usando chutes, conclui-se que os autores dos exemplos são uma bost.
Não usei porr. nenhuma de double., só uma rotina vinda do Clipper.

Ainda não conferi os valores.

[asimoes]

Quintas,

Você tá me animando de novo, já estava pensando em usar aquela string maluca, como é que você chegou a esse resultado, é por dll mesmo?

[JoséQuintas]

Função da antiga CTTools, hoje hbct FToc()

Código: Selecionar todos

#include "hbclass.ch"
#include "rmchart.ch"
#include "hbgtinfo.ch"
#include "hbdyn.ch"

FUNCTION Main

   LOCAL oCrt, cLegenda, cLabels, cTitulo, aDados, cImagem, cUnidade, cTextoVert, nMax, id_Chart, ctrgra1
   LOCAL oGrafico := RMChart():New(), nCont

   oCrt := WvgCrt():New( , , { -1, -1 }, { 25, 85 }, , .T. )
   oCrt:lModal := .T.
   oCrt:icon := "demo.ico"
   oCrt:create()
   oCrt:resizable := .F.
   hb_gtInfo( HB_GTI_WINTITLE, "Grafico com RmChart - Dll" )
   cLegenda := "Entradas*Saidas*Mais Um"
   cLabels := "Janeiro*Fevereiro*Março*Abril*Maio*Junho*Julho*Agosto*Setembro*Outubro*Novembro*Dezembro"
   cTitulo := "Gráfico de Teste"
   aDados := { { 225.25, 100.00, 100.00, 150.00, 250.00, 300.00, 25.00, 75.00, 300.00, 200.00, 325.00, 300.00 }, { 220.00, 100.00, 125.00, 300.00, 150.00, 125.00, 85.00, 50.00, 285.00, 275.00, 295.00, 280.00 }, { 125.25, 100.00, 100.00, 150.00, 250.00, 300.00, 25.00, 75.00, 300.00, 200.00, 325.00, 300.00 } }
   cImagem := ""
   cUnidade := "R$ "
   cTextoVert := ""
   nMax := 0
   id_Chart := 1

   FOR cTrGra1 := 1 TO Len( aDados )
      nMax := Max( nMax, aMax( aDados[ cTrGra1 ] ) )
   NEXT

   nMax := Round( ( Int( nMax / 10 ) * 10 ) + 10, 2 )

   oGrafico:CreateChart( hb_gtInfo( HB_GTI_WINHANDLE ), ID_CHART, 0, 0, 770, 400, Azure, RMC_CTRLSTYLE3DLIGHT, .F., cImagem, "", 0, 0 )
   oGrafico:AddRegion( ID_CHART, 0, 0, 760, 400, "RmChart", .F. )
   oGrafico:AddCaption( ID_CHART, 1, cTitulo, Transparent, Red, 9, .T. )
   oGrafico:AddGrid( ID_CHART, 1, LightBlue, .F., 20, 20, 685, 330, RMC_BICOLOR_LABELAXIS )
   oGrafico:AddLabelAxis( ID_CHART, 1, cLabels, 1, Len( aDados[ 1 ] ), RMC_LABELAXISBOTTOM, 8, Black, RMC_TEXTCENTER, Black, RMC_LINESTYLENONE, "" )
   oGrafico:AddDataAxis( ID_CHART, 1, RMC_DATAAXISRIGHT, 0.0, nMax, Len( aDados[ 1 ] ), 8, Black, Black, RMC_LINESTYLESOLID, 1, cUnidade, cTextoVert, "", RMC_TEXTCENTER )
   oGrafico:AddLegend( ID_CHART, 1, cLegenda, RMC_LEGEND_BOTTOM, Transparent, RMC_LEGENDNORECT, Red, 8, .T. )

   FOR nCont = 1 TO Len( aDados )
      oGrafico:AddBarSeries( ID_CHART, 1, aDados[ nCont ], 12, RMC_BARGROUP, RMC_BAR_FLAT_GRADIENT2, .F., 0, .F., 1, RMC_VLABEL_NONE, nCont, RMC_HATCHBRUSH_ONPRINTING )
   NEXT

   oGrafico:Draw( ID_CHART )

   Inkey( 0 )
   oCrt:destroy()
   oGrafico:Destroy()

   RETURN NIL

CREATE CLASS RmChart

   VAR  nHandle
   METHOD New()                    INLINE ::nHandle := hb_libLoad( "RMChart.dll" ), SELF
   METHOD Destroy()                INLINE hb_libFree( ::nHandle )
   METHOD CallDllStd( cName, ... ) INLINE hb_DynCall( { cName, ::nHandle, HB_DYN_CALLCONV_STDCALL }, ... )
   METHOD CreateChart( nCtrlId, nX, nY, nWidth, nHeight, nBackColor, nCtrlStyle, nExportOnly, sBgImage, sFontName, nBitmapBKColor, ... )
   METHOD AddRegion( nCtrlId, nLeft, nTop, nWidth, nHeight, sFooter, nShowBorder, ... )
   METHOD AddCaption( nCtrlId, nRegion, sCaption, nTitelBackColor, nTitelTextColor, nTitelFontSize, nTitelIsBold, ... )
   METHOD AddGrid( nCtrlId, nRegion, nBackColor, nAsGradient, nLeft, nTop, nWidth, nHeight, nBiColor, ... )
   METHOD AddLabelAxis( nCtrlId, nRegion, sLabels, nCont, nTickCount, nAlignment, nFontSize, nTextColor, nTextAlignment, nLineColor, nLineStyle, sText, ... )
   METHOD AddDataAxis( nCtrlId, nRegion, nAligment, nMinValue, nMaxValue, nTickCount, nFontSize, nTextColor, nLineColor, nLineStyle, nDecimalDigits, ;
      sUnit, sText, sLabels, nLabelAlignment, ... )
   METHOD AddLegend( nCtrlId, nRegion, sLegend, nLegendAlign, nLegendBackColor, nLegendStyle, nLegendTextColor, nLegendFontSize, nLegendIsBold, ... )
   METHOD AddBarSeries( nCtrlId, nRegion, nFirstDataValue, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )
   METHOD Draw( nCtrlId )

ENDCLASS

METHOD RMChart:CreateChart( nCtrlId, nX, nY, nWidth, nHeight, nBackColor, nCtrlStyle, nExportOnly, sBgImage, sFontName, nBitmapBKColor, ... )

   RETURN ::CallDllStd( "RMC_CREATECHART", nCtrlId, nX, nY, nWidth, nHeight, nBackColor, nCtrlStyle, nExportOnly, sBgImage, sFontName, nBitmapBKColor, ... )

METHOD RMChart:AddRegion( nCtrlId, nLeft, nTop, nWidth, nHeight, sFooter, nShowBorder, ... )

   RETURN ::CallDllStd( "RMC_ADDREGION", nCtrlId, nLeft, nTop, nWidth, nHeight, sFooter, nShowBorder, ... )

METHOD RMChart:AddCaption( nCtrlId, nRegion, sCaption, nTitelBackColor, nTitelTextColor, nTitelFontSize, nTitelIsBold, ... )

   RETURN ::CallDllStd( "RMC_ADDCAPTION", nCtrlId, nRegion, sCaption, nTitelBackColor, nTitelTextColor, nTitelFontSize, nTitelIsBold, ... )

METHOD RMChart:AddGrid( nCtrlId, nRegion, nBackColor, nAsGradient, nLeft, nTop, nWidth, nHeight, nBiColor, ... )

   RETURN ::CallDllStd( "RMC_ADDGRID", nCtrlId, nRegion, nBackColor, nAsGradient, nLeft, nTop, nWidth, nHeight, nBiColor, ... )

METHOD RMChart:AddLabelAxis( nCtrlId, nRegion, sLabels, nCont, nTickCount, nAlignment, nFontSize, nTextColor, nTextAlignment, nLineColor, nLineStyle, sText, ... )

   RETURN ::CallDllStd( "RMC_ADDLABELAXIS", nCtrlId, nRegion, sLabels, nCont, nTickCount, nAlignment, nFontSize, nTextColor, nTextAlignment, nLineColor, nLineStyle, sText, ... )

METHOD RMChart:AddDataAxis( nCtrlId, nRegion, nAligment, nMinValue, nMaxValue, nTickCount, nFontSize, nTextColor, nLineColor, nLineStyle, nDecimalDigits, ;
      sUnit, sText, sLabels, nLabelAlignment, ... )

   RETURN ::CallDllStd( "RMC_ADDDATAAXIS",   nCtrlId, nRegion, nAligment, nMinValue, nMaxValue, nTickCount, nFontSize, nTextColor, nLineColor, nLineStyle, nDecimalDigits, ;
      sUnit, sText, sLabels, nLabelAlignment, ... )

METHOD RMChart:AddLegend( nCtrlId, nRegion, sLegend, nLegendAlign, nLegendBackColor, nLegendStyle, nLegendTextColor, nLegendFontSize, nLegendIsBold, ... )

   RETURN ::CallDllStd( "RMC_ADDLEGEND", nCtrlId, nRegion, sLegend, nLegendAlign, nLegendBackColor, nLegendStyle, nLegendTextColor, nLegendFontSize, nLegendIsBold, ... )

METHOD RMChart:Draw( nCtrlId )

   RETURN ::CallDllStd( "RMC_DRAW", nCtrlId )

METHOD RMChart:AddBarSeries( nCtrlId, nRegion, nFirstDataValue, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )

   LOCAL cDouble := "", oElement

   FOR EACH oElement IN nFirstDataValue
      cDouble += FToC( oElement )
   NEXT

   RETURN ::CallDllStd( "RMC_ADDBARSERIES", nCtrlId, nRegion, @cDouble, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )

FUNCTION AMax( x )

   LOCAL nVal, oElement

   nVal := x[ 1 ]
   FOR EACH oElement IN x
      IF oElement > nVal
         nVal := oElement
      ENDIF
   NEXT

   RETURN nVal

[JoséQuintas]

Destacando a parte que alterei:

Código: Selecionar todos

METHOD RMChart:AddBarSeries( nCtrlId, nRegion, nFirstDataValue, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )

   LOCAL cDouble := "", oElement

   FOR EACH oElement IN nFirstDataValue
      cDouble += FToC( oElement )
   NEXT

   RETURN ::CallDllStd( "RMC_ADDBARSERIES", nCtrlId, nRegion, @cDouble, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )

[asimoes]

Quintas,

Maravilha, parabéns!

Já fiz o teste aqui, agora fica mais fácil montar o gráfico. Aos usuários de sData ou sTemp com RMC_CREATECHARTFROMFILE vai facilitar a vida.

[asimoes]

Quintas,

2 métodos que ficaram faltando:

#define RMC_PORTRAIT 1
#define RMC_LANDSCAPE 2

Código: Selecionar todos

oGrafico:Draw2Clipboard( ID_CHART, RMC_BMP )
oGrafico:Draw2Printer( ID_CHART, RMC_LANDSCAPE, 10, 10, 250, 150, RMC_EMF  )

METHOD RMChart:Draw2Clipboard( nCtrlId, ... )
   RETURN ::CallDllStd( "RMC_DRAW2CLIPBOARD", nCtrlId, ... )

METHOD RMChart:Draw2Printer( nCtrlId, nPrinterDC, nLeft, nTop, nWidth, nHeight, nType)
  RETURN ::CallDllStd( "RMC_DRAW2PRINTER", nCtrlId, nPrinterDC, nLeft, nTop, nWidth, nHeight, nType)

[JoséQuintas]

Acabei alterando de novo, porque achei que a classe ficou muito poluída.
Dá uma ohada, pra ver o que acha.

Código: Selecionar todos

#include "hbclass.ch"
#include "rmchart.ch"
#include "hbgtinfo.ch"
#include "hbdyn.ch"

FUNCTION Main

   LOCAL oCrt, cLegenda, cLabels, cTitulo, aDados, cImagem, cUnidade, cTextoVert, nMax, nIdChart
   LOCAL oGrafico := RMChart():New(), nCont, oElement

   oCrt           := WvgCrt():New( , , { -1, -1 }, { 25, 85 }, , .T. )
   oCrt:lModal    := .T.
   oCrt:icon      := "demo.ico"
   oCrt:resizable := .F.
   oCrt:create()
   hb_gtInfo( HB_GTI_WINTITLE, "Grafico com RmChart - Dll" )
   cLegenda   := "Entradas*Saidas*Mais Um"
   cLabels    := "Janeiro*Fevereiro*Março*Abril*Maio*Junho*Julho*Agosto*Setembro*Outubro*Novembro*Dezembro"
   cTitulo    := "Gráfico de Teste"
   aDados     := { ;
                 { 225.25, 100.00, 100.00, 150.00, 250.00, 300.00, 25.00, 75.00, 300.00, 200.00, 325.00, 300.00 }, ;
                 { 220.00, 100.00, 125.00, 300.00, 150.00, 125.00, 85.00, 50.00, 285.00, 275.00, 295.00, 280.00 }, ;
                 { 125.25, 100.00, 100.00, 150.00, 250.00, 300.00, 25.00, 75.00, 300.00, 200.00, 325.00, 300.00 } }
   cImagem    := ""
   cUnidade   := "R$ "
   cTextoVert := ""
   nMax       := 0
   nIdChart   := 1

   FOR EACH oElement IN aDados
      nMax := Max( nMax, aMax( oElement ) )
   NEXT

   nMax := Round( ( Int( nMax / 10 ) * 10 ) + 10, 2 )

   oGrafico:CreateChart( hb_gtInfo( HB_GTI_WINHANDLE ), nIdChart, 0, 0, 770, 400, Azure, RMC_CTRLSTYLE3DLIGHT, .F., cImagem, "", 0, 0 )
   oGrafico:AddRegion( nIdChart, 0, 0, 760, 400, "RmChart", .F. )
   oGrafico:AddCaption( nIdChart, 1, cTitulo, Transparent, Red, 9, .T. )
   oGrafico:AddGrid( nIdChart, 1, LightBlue, .F., 20, 20, 685, 330, RMC_BICOLOR_LABELAXIS )
   oGrafico:AddLabelAxis( nIdChart, 1, cLabels, 1, Len( aDados[ 1 ] ), RMC_LABELAXISBOTTOM, 8, Black, RMC_TEXTCENTER, Black, RMC_LINESTYLENONE, "" )
   oGrafico:AddDataAxis( nIdChart, 1, RMC_DATAAXISRIGHT, 0.0, nMax, Len( aDados[ 1 ] ), 8, Black, Black, RMC_LINESTYLESOLID, 1, cUnidade, cTextoVert, "", RMC_TEXTCENTER )
   oGrafico:AddLegend( nIdChart, 1, cLegenda, RMC_LEGEND_BOTTOM, Transparent, RMC_LEGENDNORECT, Red, 8, .T. )

   FOR nCont = 1 TO Len( aDados )
      oGrafico:AddBarSeries( nIdChart, 1, aDados[ nCont ], 12, RMC_BARGROUP, RMC_BAR_FLAT_GRADIENT2, .F., 0, .F., 1, RMC_VLABEL_NONE, nCont, RMC_HATCHBRUSH_ONPRINTING )
   NEXT

   oGrafico:Draw( nIdChart )

   Inkey( 0 )
   oCrt:destroy()
   oGrafico:Destroy()

   RETURN NIL

FUNCTION AMax( x )

   LOCAL nVal, oElement

   nVal := x[ 1 ]
   FOR EACH oElement IN x
      IF oElement > nVal
         nVal := oElement
      ENDIF
   NEXT

   RETURN nVal

CREATE CLASS RmChart

   VAR    nHandle

   METHOD New()                        INLINE ::nHandle := hb_libLoad( "RMChart.dll" ), SELF
   METHOD Destroy()                    INLINE hb_libFree( ::nHandle )
   METHOD CallDllStd( cName, ... )     INLINE hb_DynCall( { cName, ::nHandle, HB_DYN_CALLCONV_STDCALL }, ... )
   METHOD CreateChart( ... )           INLINE ::CallDllStd( "RMC_CREATECHART", ... )
   METHOD AddRegion( ... )             INLINE ::CallDllStd( "RMC_ADDREGION", ... )
   METHOD AddCaption( ... )            INLINE ::CallDllStd( "RMC_ADDCAPTION", ... )
   METHOD AddGrid( ... )               INLINE ::CallDllStd( "RMC_ADDGRID", ... )
   METHOD AddLabelAxis( ... )          INLINE ::CallDllStd( "RMC_ADDLABELAXIS", ... )
   METHOD AddDataAxis( ... )           INLINE ::CallDllStd( "RMC_ADDDATAAXIS", ... )
   METHOD AddLegend( ... )             INLINE ::CallDllStd( "RMC_ADDLEGEND", ... )
   METHOD AddBarSeries( a, b, c, ... ) INLINE ::CallDllStd( "RMC_ADDBARSERIES", a, b, ::ToDouble( c ), ... )
   METHOD Draw( ... )                  INLINE ::CallDllStd( "RMC_DRAW", ... )
   METHOD Draw2Clipboard( ... )        INLINE ::CallDllStd( "RMC_DRAW2CLIPBOARD", ... )
   METHOD Draw2Printer( ... )          INLINE ::CallDllStd( "RMC_DRAW2PRINTER", ... )
   METHOD ToDouble( c )

ENDCLASS

METHOD ToDouble( c )

   LOCAL cDouble := "", oElement

   FOR EACH oElement IN c
      cDouble += FToC( oElement )
   NEXT

   RETURN cDouble

/*
RMChart:CreateChart( nIdChart, nX, nY, nWidth, nHeight, nBackColor, nCtrlStyle, nExportOnly, sBgImage, sFontName, nBitmapBKColor, ... )
RMChart:AddRegion( nIdChart, nLeft, nTop, nWidth, nHeight, sFooter, nShowBorder, ... )
RMChart:AddCaption( nIdChart, nRegion, sCaption, nTitelBackColor, nTitelTextColor, nTitelFontSize, nTitelIsBold, ... )
RMChart:AddGrid( nIdChart, nRegion, nBackColor, nAsGradient, nLeft, nTop, nWidth, nHeight, nBiColor, ... )
RMChart:AddLabelAxis( nIdChart, nRegion, sLabels, nCont, nTickCount, nAlignment, nFontSize, nTextColor, nTextAlignment, nLineColor, nLineStyle, sText, ... )
RMChart:AddDataAxis( nIdChart, nRegion, nAligment, nMinValue, nMaxValue, nTickCount, nFontSize, nTextColor, nLineColor, nLineStyle, nDecimalDigits, ;
      sUnit, sText, sLabels, nLabelAlignment, ... )
RMChart:AddLegend( nIdChart, nRegion, sLegend, nLegendAlign, nLegendBackColor, nLegendStyle, nLegendTextColor, nLegendFontSize, nLegendIsBold, ... )
RMChart:AddBarSeries( nIdChart, nRegion, nFirstDataValue, nDataValuesCount, nType, nStyle, ;
      nIsLucent, nColor, nIsHorizontal, nWhichDataAxis, nValueLabelOn, nPointsPerColumn, nHatchMode, ... )
RMChart:Draw( nIdChart )
RMChart:Draw2Clipboard( nIdChart, RMC_BMP )
RMCHart:Draw2Printer( nIdChart, RMC_LANDSCAPE, 10, 10, 250, 150, RMC_EMF )
*/

[JoséQuintas]

Do outro jeito só será interessante no dia que existir uma IDE que faça uso dos parâmetros.

[JoséQuintas]

E ainda falta acrescentar os métodos pra gráficos de pizza, barra, etc.
Agora que funcionou, dá pra pensar nisso.

[JoséQuintas]

Mais uma coisa, se comparar o primeiro exemplo com o do VB6, vai ver claramente que tiraram do VB6.

Código: Selecionar todos

Private Sub mnGroupedBars_Click()
    Dim i As Long
    Dim nC As Long
    Dim nDataCount As Long
    Dim nRetVal As Long
    Dim sTemp As String
    ReDim aData(0) As Double
    ReDim aData2(0) As Double
    ReDim aPPC(0) As Long
    ReDim aColor(0) As Long

    DoSettings

    '************** Create the chart **********************
    nRetVal = RMC_CreateChartOnDC(Picture1.hDC, ID_RMC1, 0, 0, 597, 447, AliceBlue, RMC_CTRLSTYLEFLATSHADOW, False, "", "Tahoma")
    If nRetVal < 0 Then GoTo IsError
    '************** Add Region 1 *****************************
    nRetVal = RMC_AddRegion(ID_RMC1, 5, 5, -5, -5, "\0C", False)
    If nRetVal < 0 Then GoTo IsError
    '************** Add grid to region 1 *****************************
    nRetVal = RMC_AddGrid(ID_RMC1, 1, WhiteSmoke, False, 0, 0, 0, 0, RMC_BICOLOR_NONE)
    If nRetVal < 0 Then GoTo IsError
    '************** Add data axis to region 1 *****************************
    nRetVal = RMC_AddDataAxis(ID_RMC1, 1, RMC_DATAAXISLEFT, 0, 100, 11, 8, Black, Black, RMC_LINESTYLESOLID, 0, "", "", "", RMC_TEXTCENTER)
    If nRetVal < 0 Then GoTo IsError
    '************** Add label axis to region 1 *****************************
    sTemp = "2000*2001*2002*2003*2004"
    nRetVal = RMC_AddLabelAxis(ID_RMC1, 1, sTemp, 1, 5, RMC_LABELAXISBOTTOM, 8, Black, RMC_TEXTCENTER, Black, RMC_LINESTYLESOLID, "")
    If nRetVal < 0 Then GoTo IsError
    '************** Add legend to region 1 *******************************
    sTemp = "Bananas*Apples*Cherries"
    nRetVal = RMC_AddLegend(ID_RMC1, 1, sTemp, RMC_LEGEND_TOP, LightYellow, RMC_LEGENDRECT, Black, 8, False)
    If nRetVal < 0 Then GoTo IsError
    '************** Add Series 1 to region 1 *******************************
    '****** Read data values ******
    ReDim aData(4)
    aData(0) = 30#: aData(1) = 20#: aData(2) = 40#: aData(3) = 60#: aData(4) = 10#
    nRetVal = RMC_AddBarSeries(ID_RMC1, 1, aData(0), 5, RMC_BARGROUP, RMC_BAR_HOVER, False, Gold, False, 1, RMC_VLABEL_NONE, 1, RMC_HATCHBRUSH_OFF)
    If nRetVal < 0 Then GoTo IsError
    '************** Add Series 2 to region 1 *******************************
    '****** Read data values ******
    ReDim aData(4)
    aData(0) = 50#: aData(1) = 70#: aData(2) = 10#: aData(3) = 40#: aData(4) = 30#
    nRetVal = RMC_AddBarSeries(ID_RMC1, 1, aData(0), 5, RMC_BARGROUP, RMC_BAR_HOVER, False, LightGreen, False, 1, RMC_VLABEL_NONE, 2, RMC_HATCHBRUSH_OFF)
    If nRetVal < 0 Then GoTo IsError
    '************** Add Series 3 to region 1 *******************************
    '****** Read data values ******
    ReDim aData(4)
    aData(0) = 40#: aData(1) = 10#: aData(2) = 30#: aData(3) = 20#: aData(4) = 80#
    nRetVal = RMC_AddBarSeries(ID_RMC1, 1, aData(0), 5, RMC_BARGROUP, RMC_BAR_HOVER, False, Salmon, False, 1, RMC_VLABEL_NONE, 3, RMC_HATCHBRUSH_OFF)
    If nRetVal < 0 Then GoTo IsError

    nRetVal = RMC_Draw(ID_RMC1)
    If nRetVal < 0 Then GoTo IsError
    Exit Sub


O ponto que mostra que tiraram do VB6 é justamente nRetVal =
Isso no VB6 é porque senão não dá pra usar como função (acontecia com foxpro também).

No que isso é importante?

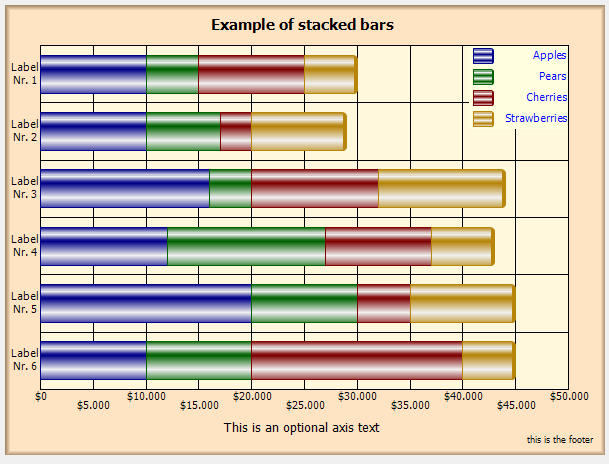

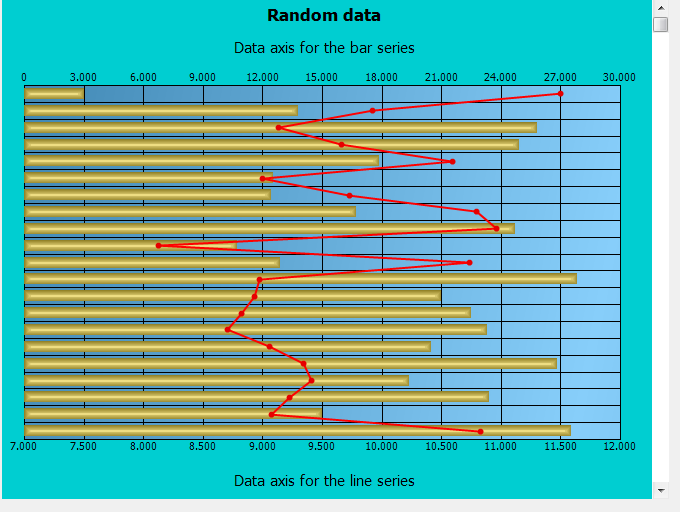

Tem exemplo de outros tipos de gráfico em VB6, usando a dll.

[JoséQuintas]

Todos tem fonte disponível.

[JoséQuintas]

Agora a brincadeira dá pra ir longe... rs
Pensando nisso que procurei simplificar a classe, pra acrescentar mais opções.

[janio]

Esses gráficos é usando alguma dll ou lib? Qual(is)

Janio
